Antenna, Low-profile, Omnidirectional, Dual-band 2.4/5GHz, 4.9/4.3 dBi, Type SMA (male), Dual-Port,

$147.52 ex GST

SKU: ANT-RAJ-24/58-PUCK
Manufacturer part number: 75-100161-003
Categories: , ,

Description

RLP-2450 2.4 and 5 GHz Dual-Band/Dual-Port Antenna

The RLP-2450 is a low profile 2 in 1 MIMO antenna that supports frequencies from 2.4 GHz to 7.2 GHz and includes a 6” (15cm) cabler with Type SMA male connector. The Rajant RLP-2450 is designed for use with our Cardinal Node, ES1, and Sparrow BreadCrumbs®. It isrIP69K so it can be deployed outdoors and is intended for warehouse automation, robotics, oil & gas, and utilities.

RLP-2450 Benefits

  • Dual port 2.4 to 7.2 GHz antenna
  • Omni-directional antenna with 4.9 dBi gain

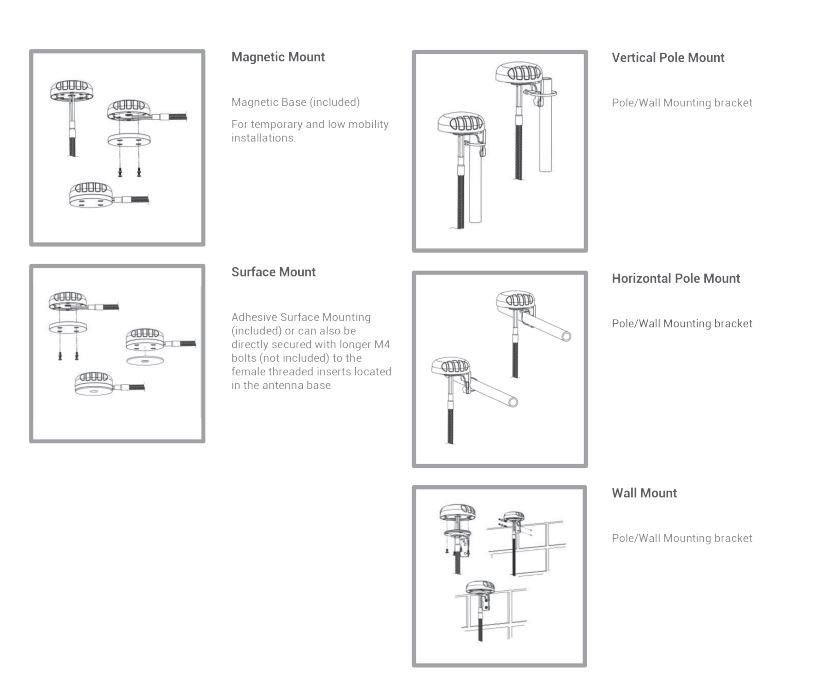

  • Easy installation, multiple mounting potions IP 69k

Technical Data

  • Ports 2
  • SISO/MIMO – MIMO
  • Frequency Bands 2400 – 2500 MHz, 5000 – 6000 MHz
  • Polarisation – VerticalrPeak Gain 4.3/4.9 dBi
  • Rated Wind 136 mph (220 km/h)
  • Connector Type SMA – Type (M)
  • Cable Type/Length RG-141 15cm/6in
  • Temperature -40 to +80C

Application Areas

  • Smart utilities: Smart power, Gas & Water Metering
  • Smart Buildings: Climate control, access control, security, irrigation
  • Industrial factory automation, robotic machinery and other Industry 4.0 applications
  • Digital Signage
  • Warehouses & Logistic systems
  • Transport (Busses, Utility & Public Safety)

Additional information

Weight 1 kg
Dimensions 17 × 9 × 14 cm

Data Spec Sheet
