Starlink Mini – Caravan Builder Value Bundle, power, IP68 recessed socket & cables

Specifications

Starlink Mini Compatible, Caravan Builder Bundle – Complete 12V DC Integration Kit

A consolidated, OEM-ready Starlink Mini DC wiring and power package engineered for caravan manufacturers and professional van builders integrating the Starlink Mini into new builds or retrofit layouts.

Bundle Contents:

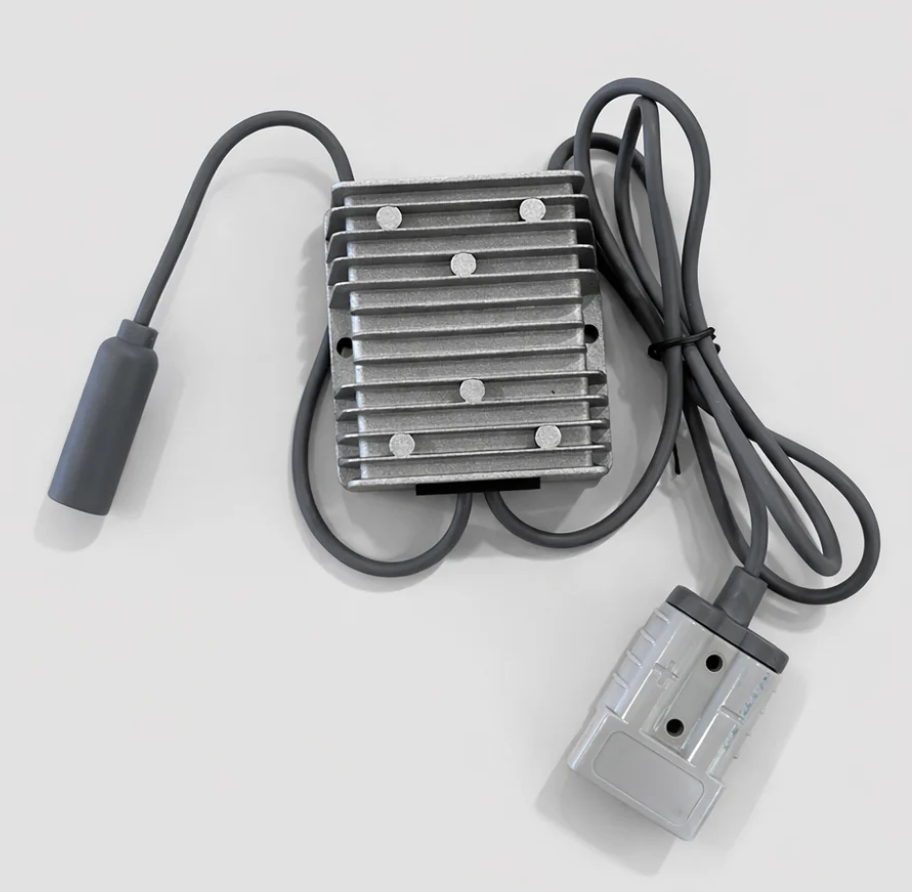

• 1 × Certified DC-DC 12V–35V power regulator with Anderson plug

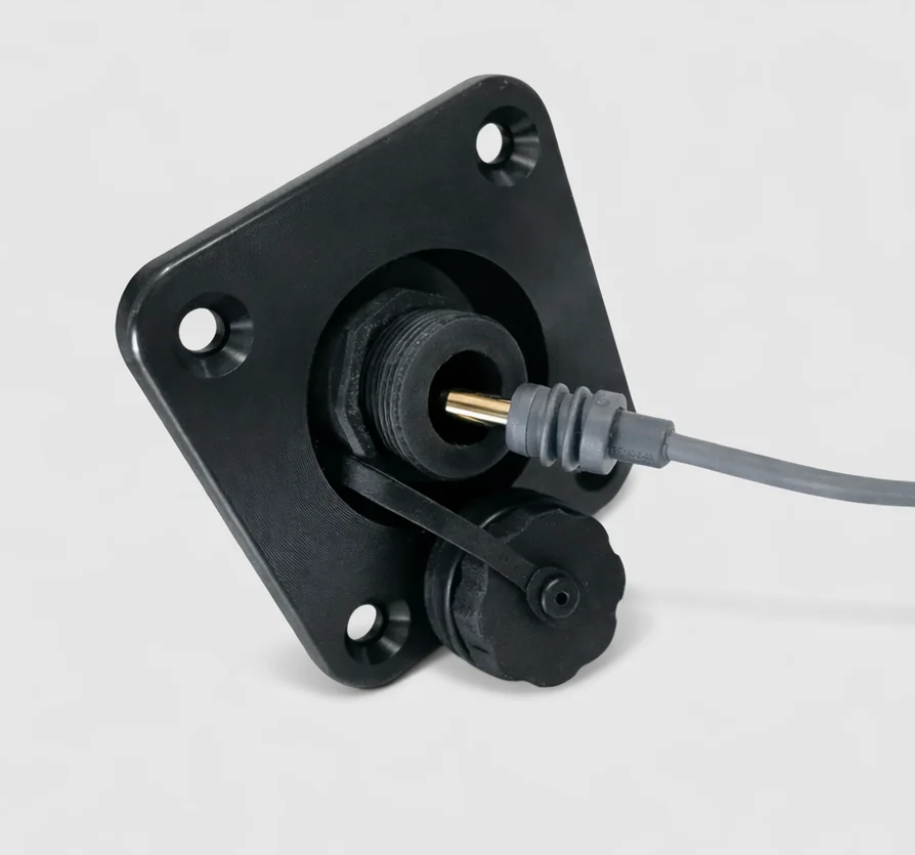

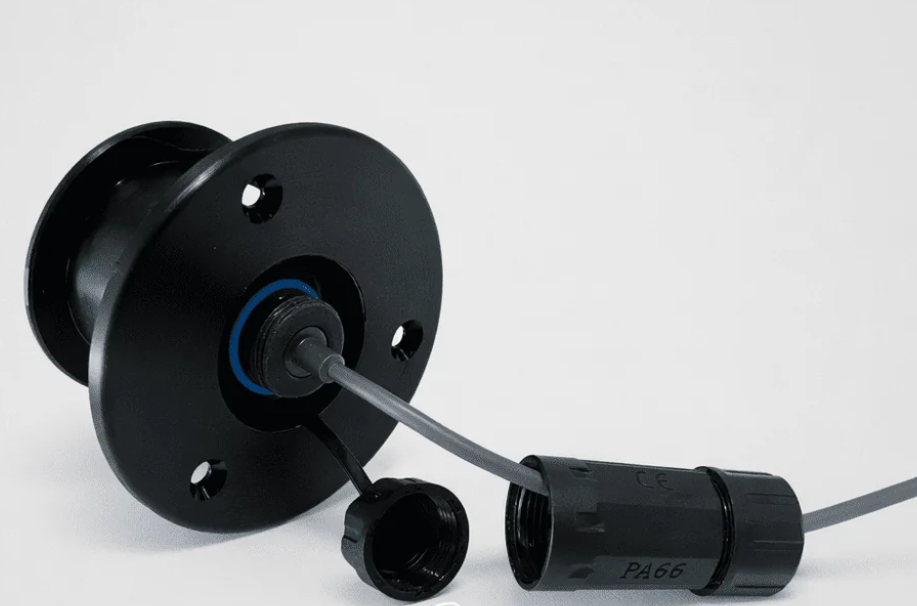

• 1 × Recessed Starlink Mini DC socket – IP68 cable pass through

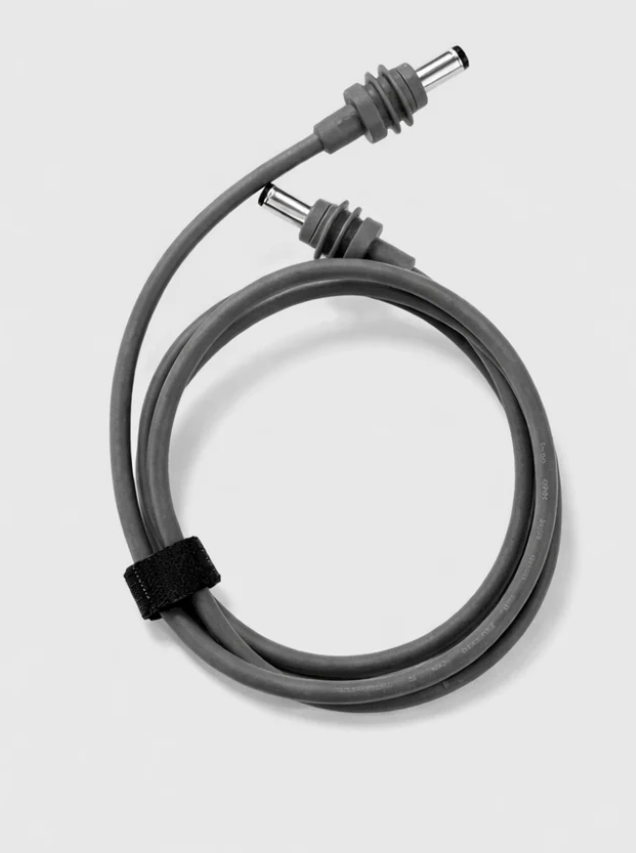

• 1 × 3m Starlink Mini DC cable
• 1 × 20m Starlink Mini DC cable

💡 Note : Starlink Mini receiver dish is not included and can be purchased from Starlink.com or major retailers.

Key Features

✅ Complete Certified 12 V → 35 V DC Power solution — Includes AU/NZ certified 12V voltage booster, recessed DC socket and internal/external cabling for a unified Mini-ready wiring system.

✅ 35 V Regulated Output — The certified DC-DC booster maintains stable voltage for Starlink Mini under variable caravan battery conditions.

✅ Recessed In-Wall Socket — Provides an IP68 protected, flush DC pass-through point for internal fit-out.

✅ Short Internal Cable + Long External Cable — Supports both internal routing and extended placement of the Starlink Mini outdoors

✅ Caravan-Grade Components — All items selected for RV electrical environments, cabinetry routing and exterior cable runs.

✅ Builder-Standardised Kit — Simplifies OEM wiring looms and ensures consistent installations across multiple vehicle models.

Installation Overview

1. Mount the DC-DC booster inside a protected electrical compartment with adequate ventilation.
2. Connect the booster input to the caravan 12 V system using the Anderson-style connector.
3. Route the 3m internal cable between the booster and the recessed DC socket, maintaining appropriate bend radius and strain relief.
4. Install the recessed socket into the wall or panel cut-out using the supplied backing plate.
5. Connect the 20m cable to the external side of the recessed socket and route it externally to where the Starlink Mini will be positioned, avoiding abrasion points and excessive heat sources along the path.
6. Verify polarity, secure all connections, and confirm stable 35 V output before operating the Starlink Mini.
