POE Injector, DC/DC, 4 pair passive POE, 10-36 VDC input , 48 VDC output , 50W, 10/100 ethernet, RJ4

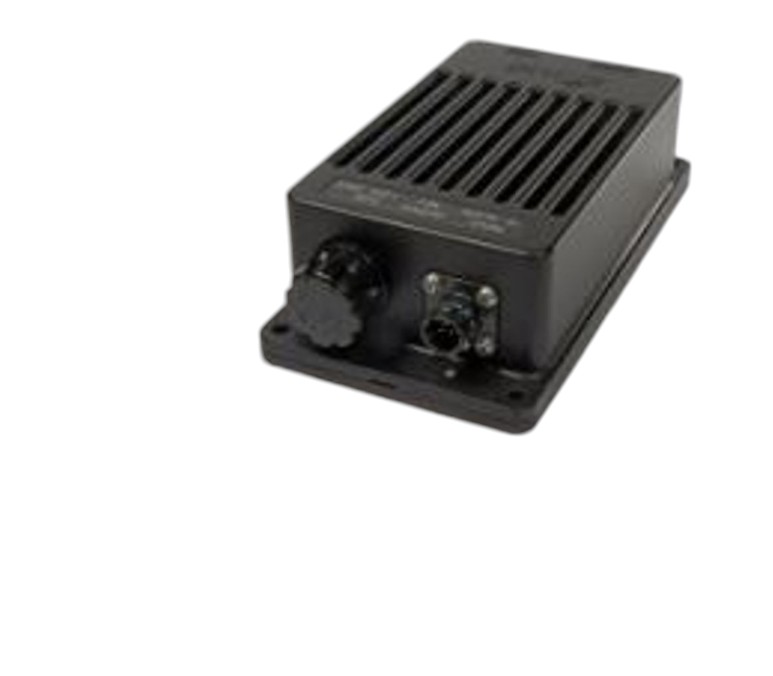

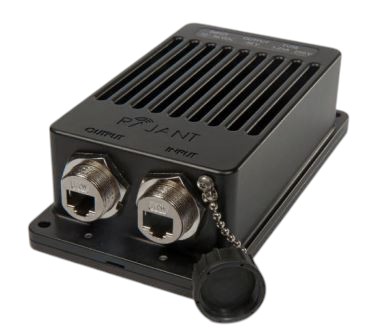

The Rajant VHDC-series consists of passive Power over Ethernet (PoE) compatible DC/DC converters designed for high reliability in military and industrial applications.
$4,351.80 ex GST
Manufacturer part number: 01-000029-048
Description
24V Outputr2.08 Max. Output Current Sealed (dust-tight, waterproof)
Featuring ruggedized enclosures with over-temperature, over-voltage, over-current, and short-circuit protection, the VHDC-series provides:
- Manufacturer replaceable input and user replaceable output fuses on VHDC-24V-50W and VHDC-48V-50W, and user replaceable input and output fuses on the VHDC-24V-50W-LC to protect the devices from over-current conditions.
- Wide 10–36 V input range, which is useful in stabilizing the power from input sources such as vehicle batteries.
- High power 24 V or 48 V, 50 W isolated and regulated output.
- High efficiency (83% typical).
- VHDC-24V-50W and VHDC-48V-50W ONLY: Designed to meet the IP67 (6: Dust-tight, 7: Waterproof) ingress protection specifications, making them ideal for outdoor applications.
Additional information
Weight | 1 kg |
---|---|
Dimensions | 17 × 9 × 14 cm |
OEM Part No. | 01-000029-048 |
