Description

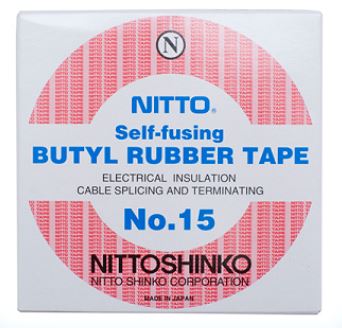

Nitto Butyl Rubber Self fusing Tape .5mmx19mmx10m
Product Description
- Nitto 15 is a self-fusing, butyl rubber tape, widely used for the electrical insulation, protection, sealing, splicing and termination of 6 to 22 kV cables. Nitto has eliminated the conventional need for a liner thereby reducing the time required to apply the tape.
- Nitto 15 has an excellent volume resistivity, a high breakdown voltage and a low dissipation factor. It is totally resistant to moisture, water and chemicals. Nitto 15 offers excellent electrical insulation, workability and weather protection. The product has a superior weatherability and ozone resistance and because of the line less system a very short application time. It completely self-amalgamates in two hours.
Application
- Nitto 15 can be used for termination, splicing and corrosion protection of cables.
- Also insulation and protection of lead shielded cables is possible.
- The product is used for its waterproof sealing and corrosion protection of cables in marine and off-shore environments.
| Property | Unit |
| Application Temperature | -10°C to +40°C |
| Operating Temperature Range | -40°C to +65°C |
| Maximum Operating Temperature | +100°C Short Period |
| Self-amalgamating Property | Nitto Tested |
| Elongation 180% 5min | Holding Not Amalgamated |
| Elongation 180% 60min | 70% Amalgamated |
| Elongation 180% 24hrs | 100% Amalgamated |
