Description
DCDC 10G POE+ Injector
Features
- 12-24VDC to 54VDC Efficient DCDC Converter
- 802.3at 54V 30W Class 4 PoE+ Output
- 10/100/1000Mb/2.5G/5G/10G Compatible

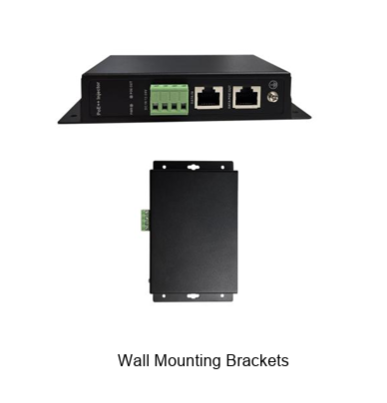

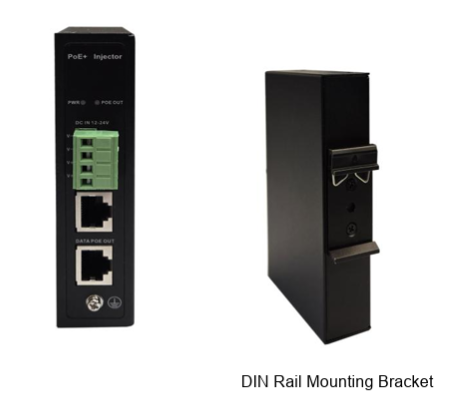

- DIN Rail or Wall Mount (Brackets Included)
- Over Current, Over Temperature and LVD Protections
- Metal Housing, Removeable Wire Terminal Connector
- Wide Temperature Operation: -20C to +60C
Applications
- Solar Battery Systems
- Vehicular and Marine Applications
- Wireless Equipment
- Security Systems
Description
The TP-DC-12AT30-10G is a DC-to-DC PoE+ inserter designed for reliable performance in battery-powered systems, accepting a 12-24VDC input. It supports data speeds from 10/100Mb to 10G, making it ideal for modern, high-speed networks. The durable metal enclosure comes with brackets for easy DIN rail or wall mounting.
Built-in protections safeguard against overloads, overheating and Low Voltage Detect (LVD). With an operating temperature range of -20°C to +60°C, this inserter ensures dependable operation in challenging environments
