Description

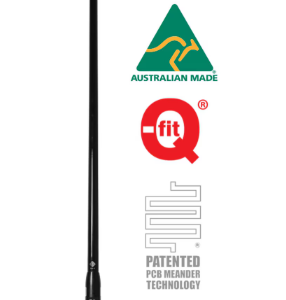

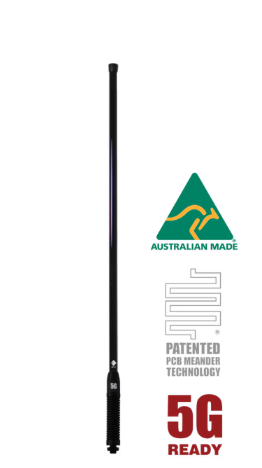

The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).rrIt is ideal for use with cellular modems & active repeaters, especially when signal is poor.rrThe outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.rrThe CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.rrKey Features:rrPatented PCB-based collinear design offers the ultimate in pattern and gain stability.rrIdeal for new 5G/LTE networks with true multi-band coverage.rrHigh gain across all bands, making it suitable for fringe and rural applications.r
| Length [mm] | 920 |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Horizontal Beamwidth | Omni-Directional |
| Mounting Area | 13-16mm diameter hole |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Power [W] | 10 |
| Cable And Connector | 5m RG58 low loss cable (9006) terminated with SMArrmale connector |
| Whip Material | Fibreglass |
| Packaging | Retail Hang Sell Bag |
| Colour | Black |
| Antenna Type | Collinears, Ground Independent, Meander,rrSpring Mount, Vehicle |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
