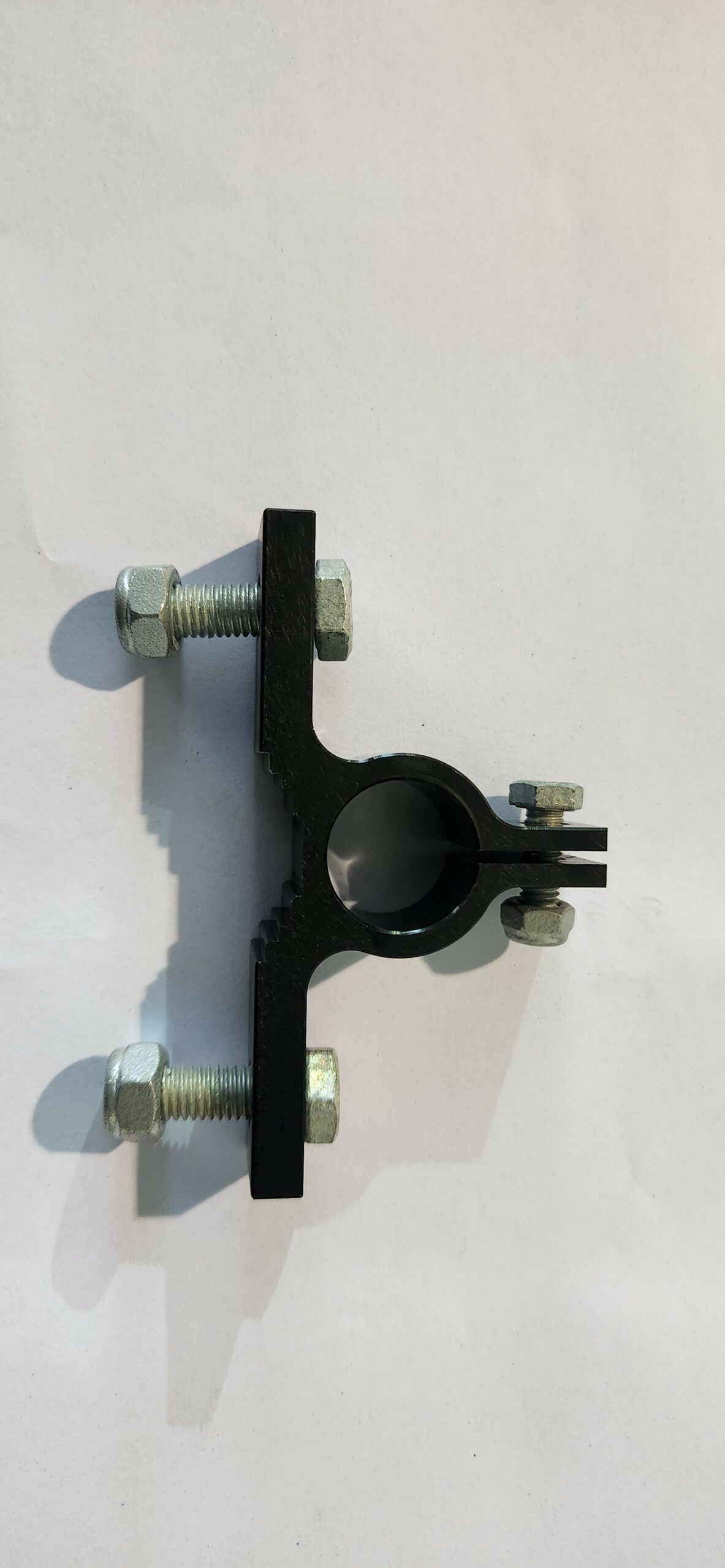

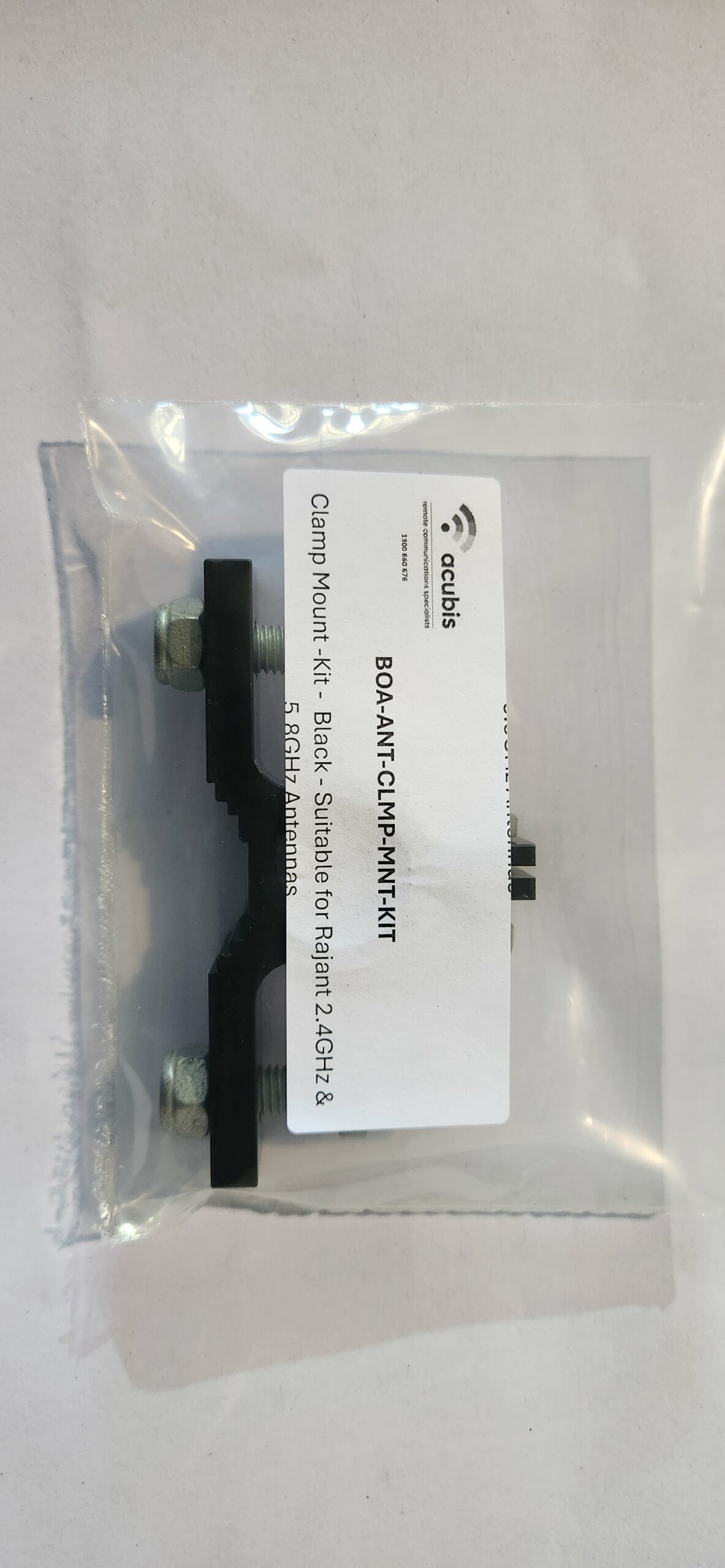

Antenna, 2.4GHz OMNI-DIR, 5dBi Gain, N-Type Male, Inc. BOA-ANT-CLAMP-MOUNT

$323.34 ex GST

2 in stock

SKU: ANT-RAJ-2400-5NM-WB
Manufacturer part number: 75-100139-024; BOA-ANT-CLMP-MNT-KIT
Categories: , ,

Description

KMA-2400-5 2.4–2.5 GHz Omnidirectional Kinetic Mesh® Antenna

The 2.4–2.5 GHz omnidirectional Kinetic Mesh antenna consists of a linear array, encapsulated in a heavy duty fiberglass radome with a thick walled mounting base for reliable long term use. The rugged design allows the antenna to withstand harsh environments and is ideal for industrial and military wireless applications. The antenna is DC grounded for ESD protection of radio components.

KMA-2400-5 Benefits

  • 5 dBi gain
  • Type N (male or female) connector
  • Fully sealed IP67 (6: Dust-tight, 7: Waterproof) design
  • UV stable, black fiberglass radome 0.64” (16.3 mm) diameter
  • Black chrome plated mounting base
  • DC grounded design

Additional information

Weight 1 kg
Dimensions 27 × 18 × 13 cm

Data Spec Sheet
